CNC AUTOMATED PUNCH DRILL CUT LINES

RAW MATERIAL : PIPES   |   TUBES   |   ANGLES   |   FLATS   |   CHANNELS   |   BEAMS

END PRODUCTS / USAGE :

  • Retail Display Racks - Pipe slotting
  • Scaffolding Inner Props
  • Industrial Modular Pipe supports
  • Solar Mounting Structures - SHS
  • Highway Roller Crash Barriers
  • Heat Exchanger Pipes
  • Warehouse storage racks
  • Metal furniture and frames
  • Manifolds, Gas grills & Burners
  • Steel Wood Timber Beam
  • Steel fence poles & handrails
  • Modular Steel Pallets
  • Waler Beams
  • Heavy Steel construction & PEB
  • Heavy frames, Bridges, Barriers
  • Elevation, Roofs, structures
Heavy steel
cnc punch drill cut line

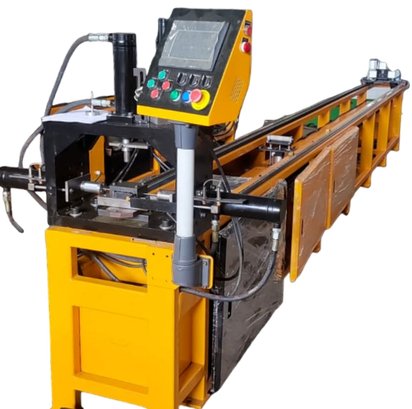

Capable of producing ready-to-use parts in a uni-step process, these units can automatically punch, drill & cut long pieces of structural profiles without moving the material throughout the shop-floor onto dedicated machinery. Incorporating an fully programmable CNC motion control for positioning, selectable punches, drill heads, stamping/ marking units along with sawing or shear cut station for cutting the parts at the required length.

BENEFITS :

  • All unnecessary engineering steps and supplementary procedures can be eliminated entirely from the course of manufacturing.
  • Can be programmed to punch multiple sides of structural steel in one go, without actually rotating and re processing all over again.
  • End-to-end fabrication can be carried out 3-4 times faster than conventional methods while 30-40% of decrease in operating costs is guaranteed.

CUSTOMIZATION : As per your drawings and part families, we suggest the most cost efficient way - we justify & advice on customized configurations like using saw/shear/plasma cutting or attached punching and drilling units as the shop-floor projects demand.

ADDITIONAL ATTACHMENTS : Material auto loading / handling system, marking and engraving (Part numbering, QR, Layout instructions).
